Second Hand 95% New CG FC200 ECU Programmer Full Version

Product Description

95% New Second Hand CGDI FC200 ECU Programmer ISN OBD Reader Update Version of AT-200 Supports Calculating Checksum


Top Reasons to Buy CG FC200:
1. Come with 1 Year Free Update; Click here to buy yearly subscription
2. Full version with all licenses activated, no extra charge for license.
3. Multi-Language: English (If you need Russian, Polish, Turkish, German, French, Spanish, please pay for Language Change Service to activate.)
4. Supports 4200 ECUs/EGS, covers 80% of models in the market.
5. 3 Operation modes: With CAN-bus, No disassembly (platform mode), and Boot mode
6. Calculates checksum online. Check FC200 Support Checksum List
7. Bosch search for ECU type is free.
8. Supports connection by Bench, Boot, OBD.
9. Supports GM E38, E39, E67 ECU, ZF 9HP Gearbox, etc.
10. Reads BMW ISN Code via OBD, replacing CG AT200 ECU Programmer.
11. Supports key programming with CGDI BMW, VVDI 2 Full, Mini ACDP, AUTEL IM508, IM608 Pro, etc.


Product Functions:

1. Original Parts Protection
FC200 supports OBD and platform mode for more than 98% of ECU/EGS. There is no need to open shell and no punch. FC200 protects original parts of the vehicle.

2. Smart Identification
The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.
If the ECU module is not damaged and can be communicated, and if the wiring is correct and identification is successful, FC200 can read chip and firmware information.

3. Module Clone
FC200 supports ECU/EGS reading&writing and modules clone, synchronization matching, without online programming, flash data by area, automatic check, chips and modules protection.

4. ISN Reading and Writing
FC200 supports all BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.

5. VIN Writing
FC200 solves the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

6. Data Processing
FC200 supports data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs.
Turn off anti-theft system for Bosch MED/EDC17 series ECU
TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. DTC Shielding
The engine DTC code can be shielded, such as the shielding of the 28A0/101F01 fault code of the BMW N55 engine, read the engine data via FC200, then load the data into the hexadecimal data modification tool, modify and save the bytes of the fault code comparison, and then use FC200 to load the modified data and write it back to ECU.




Product Features:

1. Auto ECU Programmer for repair necessary--Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.
Support almost all the BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.

2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD.
Quickly solve the problem for data collection of bmw all key lost.
With more stable and efficient irremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.

3. Work together with CGDI BMW, VVDI2 Full, Mini ACDP, AUTEL IM508, IM608 Pro, etc to program keys, save your money
(The cost of similar equipment is very expensive).

4. With stable and effective functions by professional quality test. It is easy to operate and quick to start.

5. Add Mercedes-Benz 271 Audi Volkswagen 06J and other ecu types (Some are paid service).

6. Full Version with All License Activated. Free Update Online for One Year. Annual fee needs to be checked with us after the first year. If you don't pay the annual fee, you can still use it, but some bosch ecu does not have the verification function (the function that needs to be connected to the server cannot be used)

7. Multi-Language: English, French, Spanish, Polish, Traditional Chinese and Simplified Chinese

8. With new update, FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, kessy, Dimsport etc.

9. Bosch ECU serach: Free to find out what ECU type  (except bosch made in China)

10. With CAN-bus ,and no disassembly (platform mode), and boot mode





FC200 Software Features :

1. Interactive Interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.
2.Built-in Model Search
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.

ECU Search: Take the BMW MSV90 engine computer as an example. First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.
Bosch Number Search: Take the Volkswagen engine computer as an example. First select "Volkswagen", select "Bosch Number" as the search condition, and enter "0261S10525".
Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.

3. Intuitive Wiring Diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.

FC200 Hardware Features:

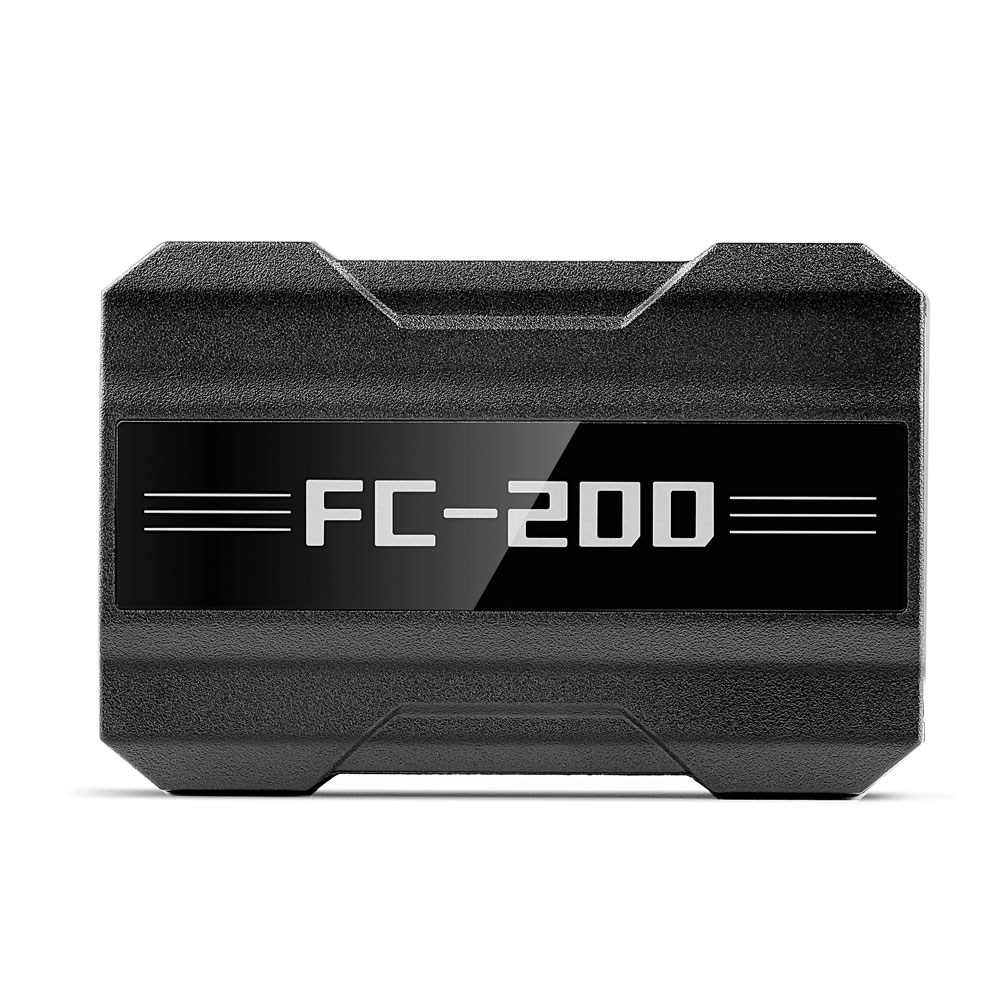

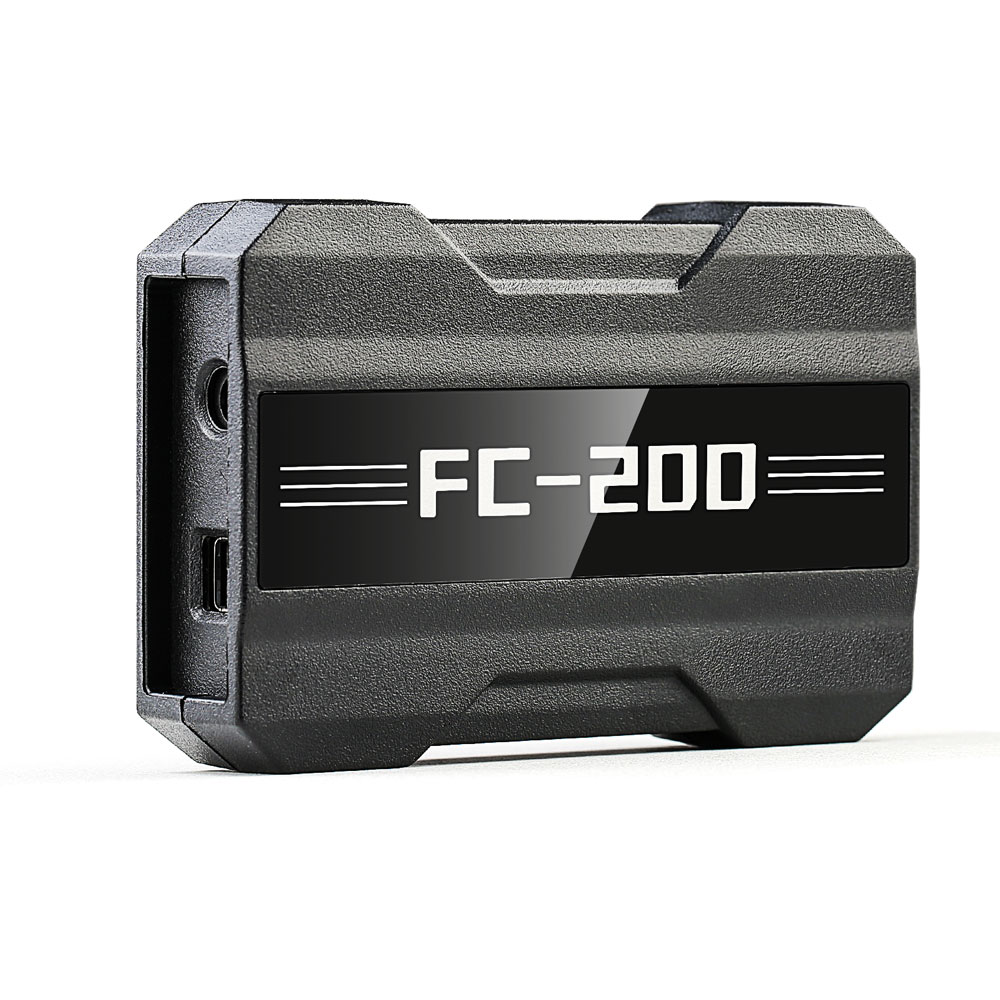

FC200 Main Unit
1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification
2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments

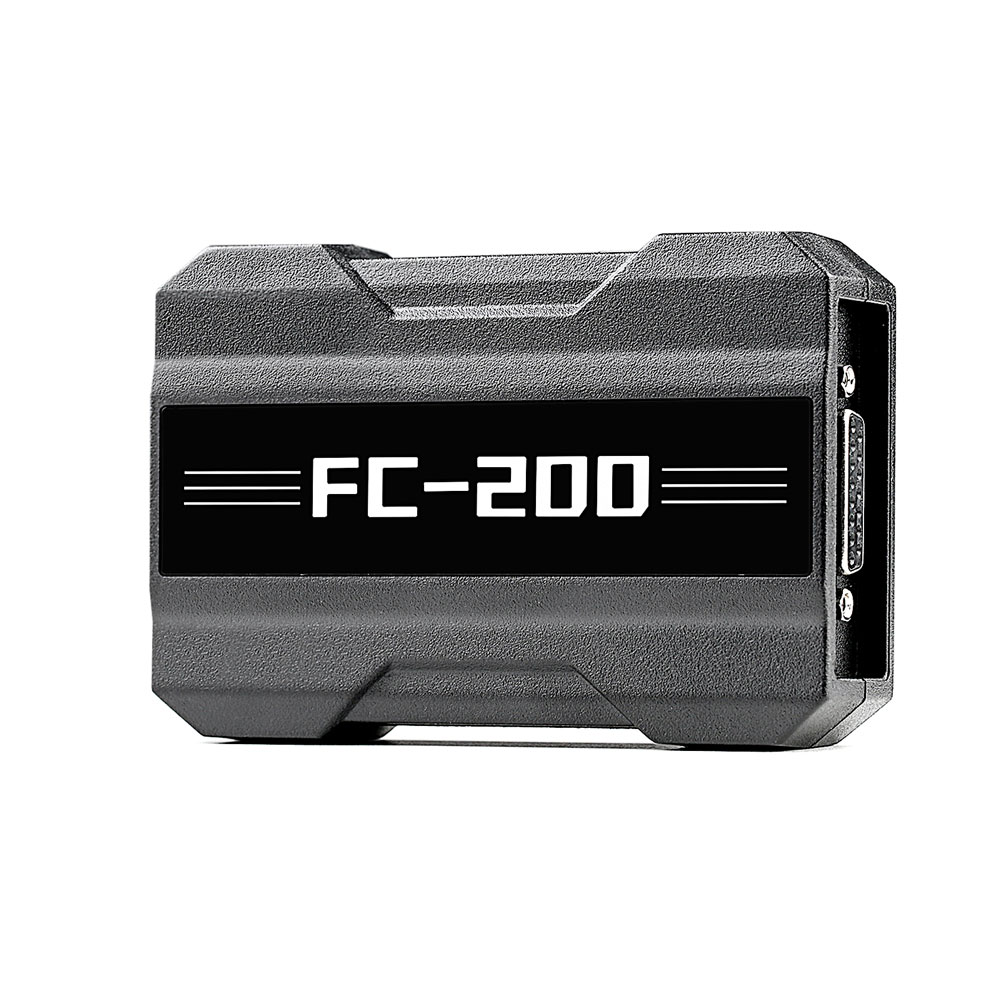

3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.

FC200 Adapters
1.Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continously for 10,0000 times.
2. Tight design, seemless connection between ECU and host to ensure continuours communication and excort your operation
3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS

OBD2 Cable
FC200 obd2 cable mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.
110cm, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable



FC200 ECU Programmer Wiring Diagram:

For Volkswagen ME17.5.22-TC1724:

For BMW N20 MEVD17.2.9-TC1797:


Supported Vehicle Models

Support 4200 kinds of ECUs, involving 80% of the models on the market.

European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra

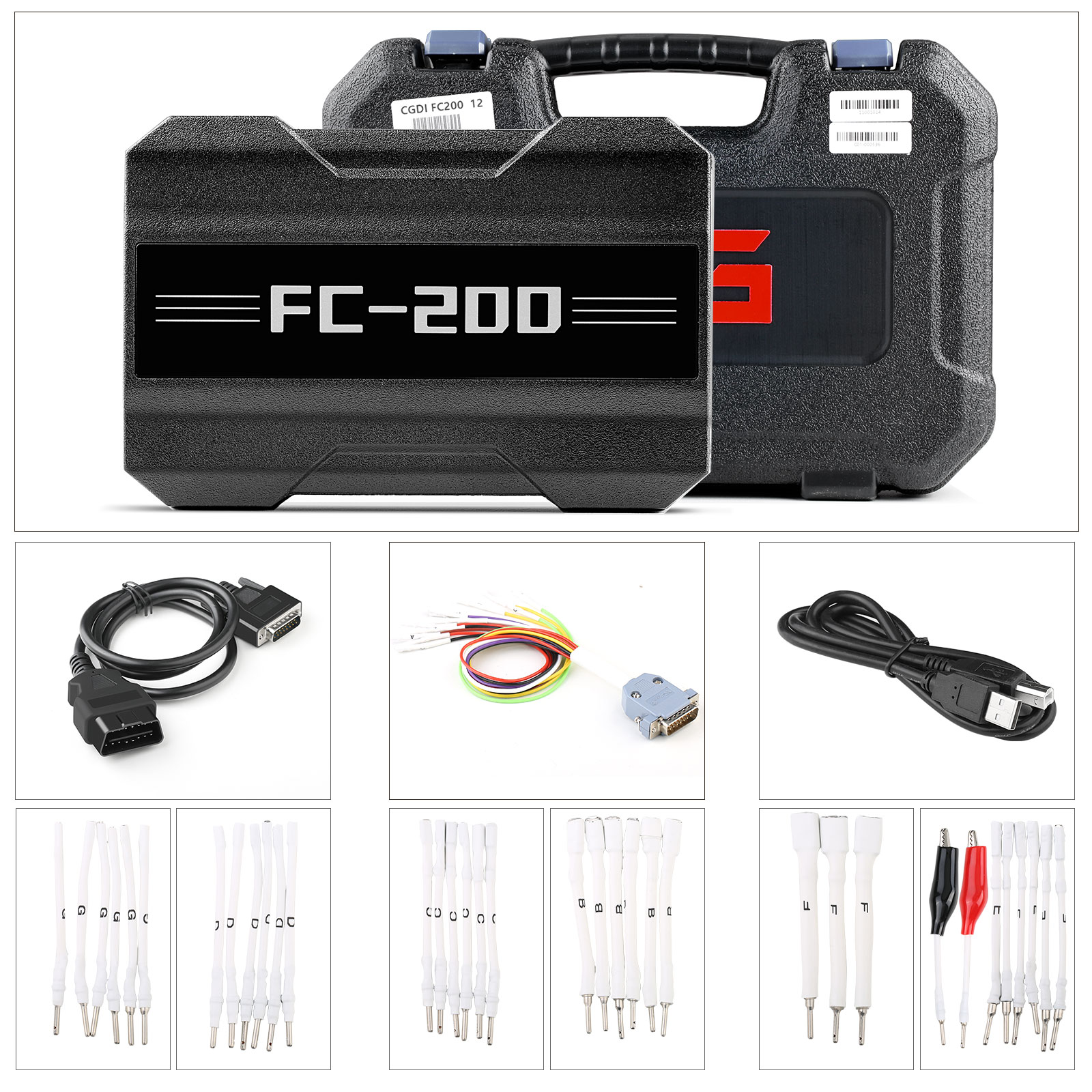

CG FC200 ECU Programmer Package List:


1pc x CGDI FC200 host
1pc x OBD cable
1pc x Jumper
1pc x USB cable
1pc x red clamp
1pc x black clamp
6pcs x G-type adapter cable
3pcs x F-type adapter cable
6pcs x E-type adapter cable
6pcs x D-type adapter cable
6pcs x C-type adapter cable
6pcs x B-type adapter cable

---
