New Arrivals CGDI BD006 Car Battery Tester Supports Testing Vehicle's Starting Battery, Cranking Test, Charging Test, Battery Test, SOH, SOC

Product Introduction:


The CGDI BD006 Car Battery Tester uses advanced conductance testing technology to deliver convenient, fast, and accurate measurements of a vehicle starting battery's actual cold-cranking current capability and state of health (SoH). It also enables quick detection of common faults in the vehicle's starting and charging systems.


It enables maintenance personnel to diagnose automotive faults quickly and accurately, thereby streamlining the repair process.


1) Accurate testing, fast operation, and an intuitive display.

2) Key functions include battery testing, cranking testing, charging testing, and data review.

3) Compatible with all automotive starter lead-acid batteries, including ordinary lead-acid, EFB, AGM flat-plate, AGM spiral, and gel batteries.

4) Reverse polarity protection prevents damage to the tester and avoids adverse effects on the vehicle or battery.

5) Test standards cover most current global battery standards: CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, and BCI.

6) Supports multiple language options, including English, Spanish, German, French, Italian, Portuguese, Russian, Japanese, and more. Additional languages can be customized upon request.

If you'd like a more compact bullet-point style for a product page or a more formal tone for a spec sheet, let me know and I can adjust accordingly.



scree size: 2.4-inch TFT color screen(320*240)

voltage range: 12V/24V Battery

range CCA: 20-2000CCA

battery range:10AH-220AH

operating temperature:-20℃ to 60℃(-4℉ to 140℉)

storage temperature:-20℃ to 70℃(-4℉ to 158℉)

test standards: CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI

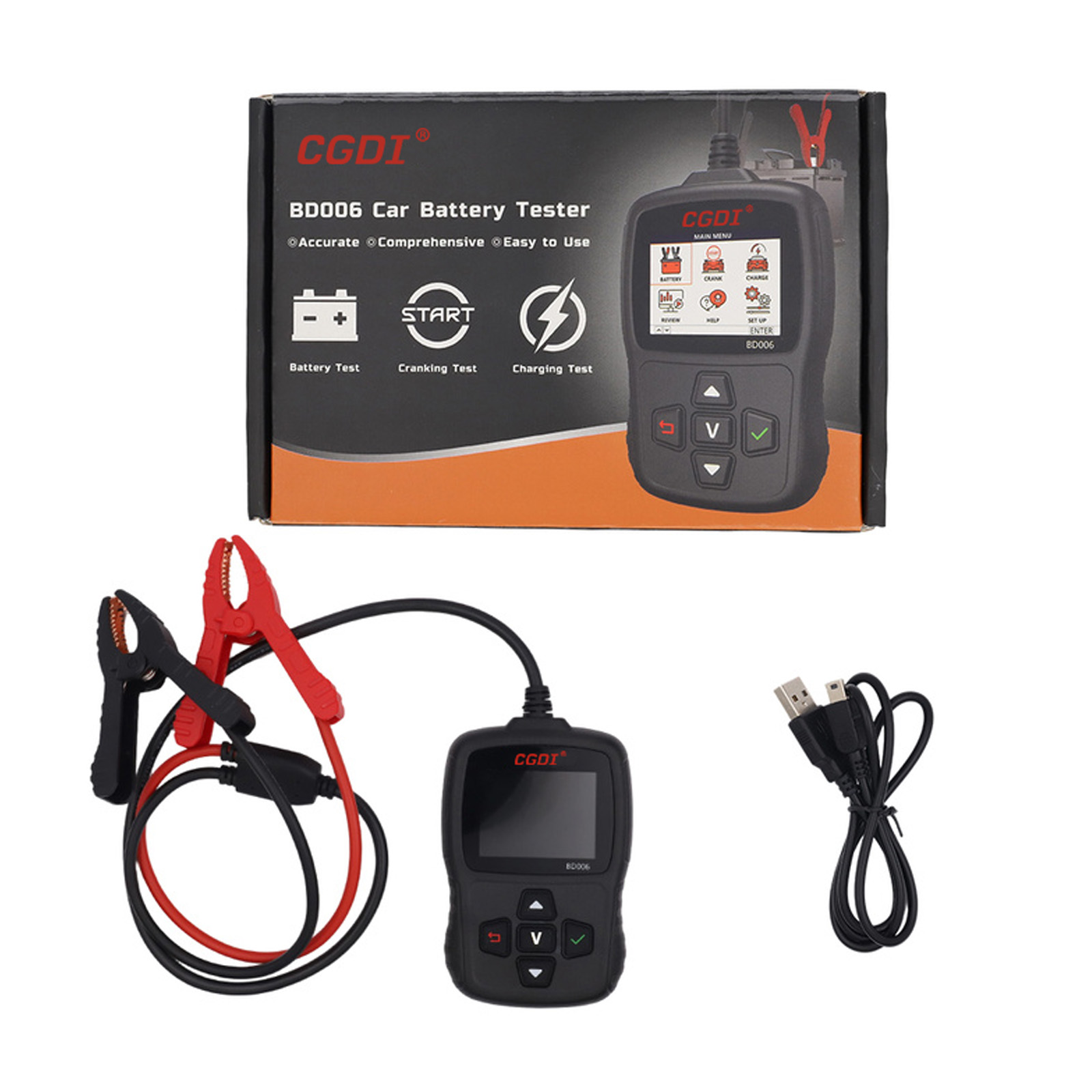

1pc x battery tester(with clamp test harness)

1pc x USB Cable

1pc x User Manual
